CUSTOM TWIN SCREW EXTRUSION MACHINERY
Custom Twin-Screw Extruders for UAE and GCC Processors
Co-rotating lines engineered around your material, throughput, and operating conditions — with regional support from Ajman.
UAE SUPPORT | IN-HOUSE ELEMENTS & BARRELS | Ø14–97 MM | 24-MONTH WARRANTY
Request Engineering Review
Applications engineer replies. No catalog spam.
Ø14–97 mm
Screw diameter range
0.5–1200+ kg/hr
Throughput range
L/D 24–60
Customisable ratio
24 months
Standard warranty
The Challenge
Your Process Demands More Than a Standard Machine
A catalog extruder is specified to a generic duty — not your filler load, residence time, or operating conditions. When the line sits far from support, spare delays and missed commissioning become process problems, not purchasing footnotes.
The Testron Approach
Engineered Around Your Material and Production Goals
We do not supply standard machines — we engineer co-rotating twin-screw lines around your material, throughput, and L/D. Manufactured in Bangalore, with regional support from Ajman for commissioning, spares, and servicing across the UAE and GCC.
Request engineering reviewIn-House Core Components
Engineered Subsystems — Not Outsourced Subassemblies
Every extrusion line is built from in-house screw elements, barrels, shafts, and drive systems — configured for your material, filler load, and downstream process.
Twin-Screw Elements (Ø14 mm – Ø97 mm)
Modular segmented design for conveying, kneading, mixing, reverse, and barrier applications.
- Optimized flight geometry for superior dispersion
- Wear-resistant metallurgy with nitriding and hard-facing options
- Balanced for high RPM stability up to 1200 rpm
Barrel & Barrel Liners
Replaceable liner design that reduces maintenance cost and extends barrel life.
- Superior wear resistance for abrasive compounds
- Precision-bored for optimal screw-barrel clearance
- Nitrided and bimetallic liner options for corrosive applications
Gearbox & Shaft Drive
Heavy-duty extruder gearboxes and shaft systems built for high torque transmission and long service life.
- Precision-ground helical gearing
- High torque capacity for demanding compounds
- Coupling configurations for high filler loads
Melt Pumps & Auto-Filtration
Stable melt pressure control and filtration for consistent output and extended downstream equipment life.
- Stable melt pressure and reduced pulsation
- Improved output consistency across the line
- Replaceable screen packs for auto-filtration
MODULAR SCREW ELEMENTS
Five Element Families — Engineered for Your Compound
In-house screw elements from Ø14–97 mm, configured for conveying, kneading, mixing, reverse, and specialty process zones. Wear-resistant metallurgy with nitriding and hard-facing options — matched to filler load, dispersion goals, and your existing screw configuration.

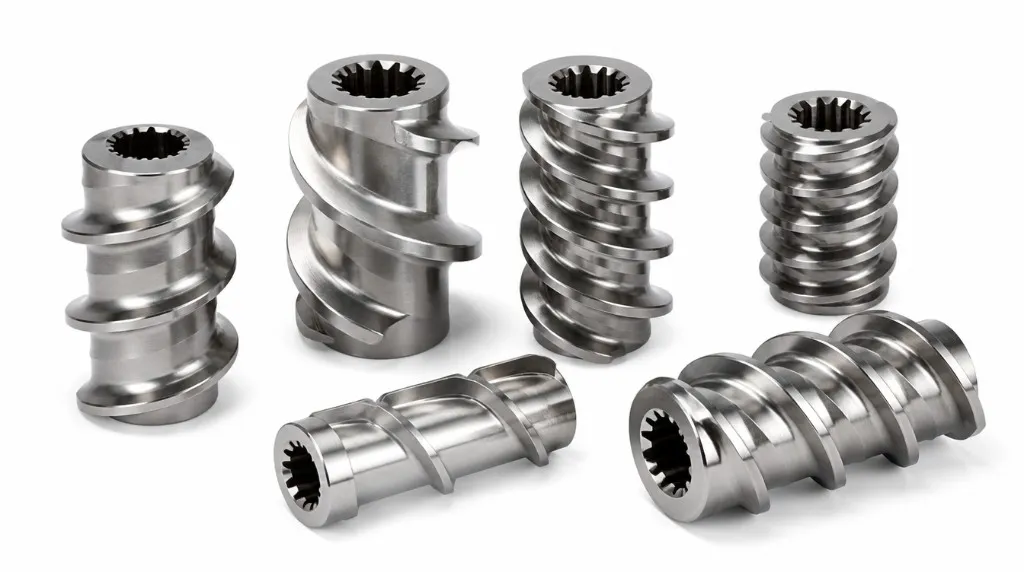

Conveying Elements
Reliable forward transport
Forward-flight elements move polymer and additives through feed, melting, and transfer zones with controlled fill. Configured for your screw diameter, L/D, and throughput target.
- Optimized flight geometry for stable material flow
- Sized for Ø14–97 mm modular screw builds
- Balanced for high-RPM operation (size-dependent)
- Wear metallurgy for filled and mineral-loaded compounds

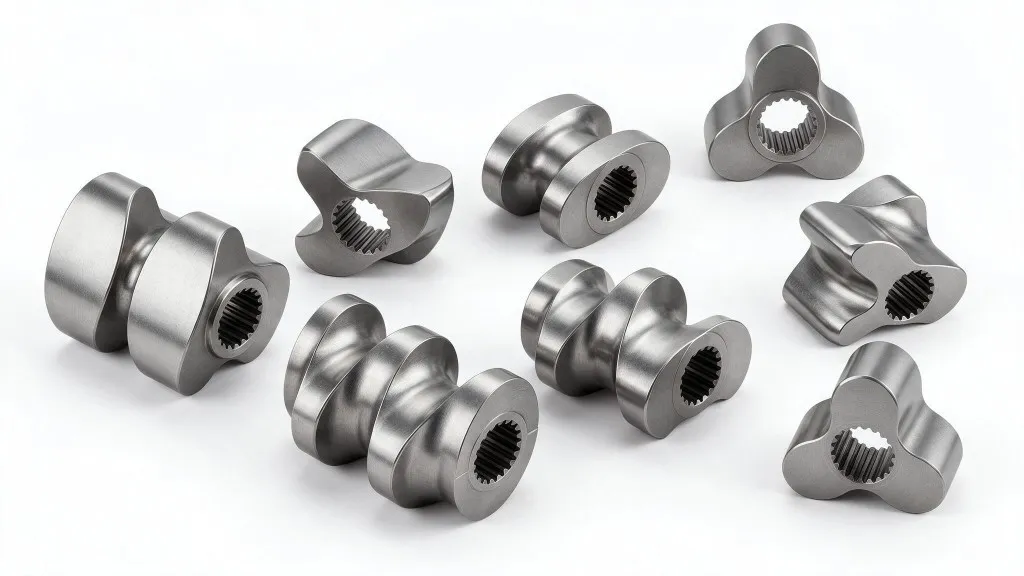

Kneading Elements
Controlled shear and dispersion
Kneading blocks deliver targeted shear for pigment dispersion, additive distribution, and filler wet-out. Available in 30°, 45°, and 60° configurations to match your compound and mixing intensity.
- 30°, 45°, and 60° kneading angles for process tuning
- Dispersive mixing for masterbatch and compounding
- Wear-resistant tool steels with nitriding / hard-facing
- Configured with conveying zones for balanced fill

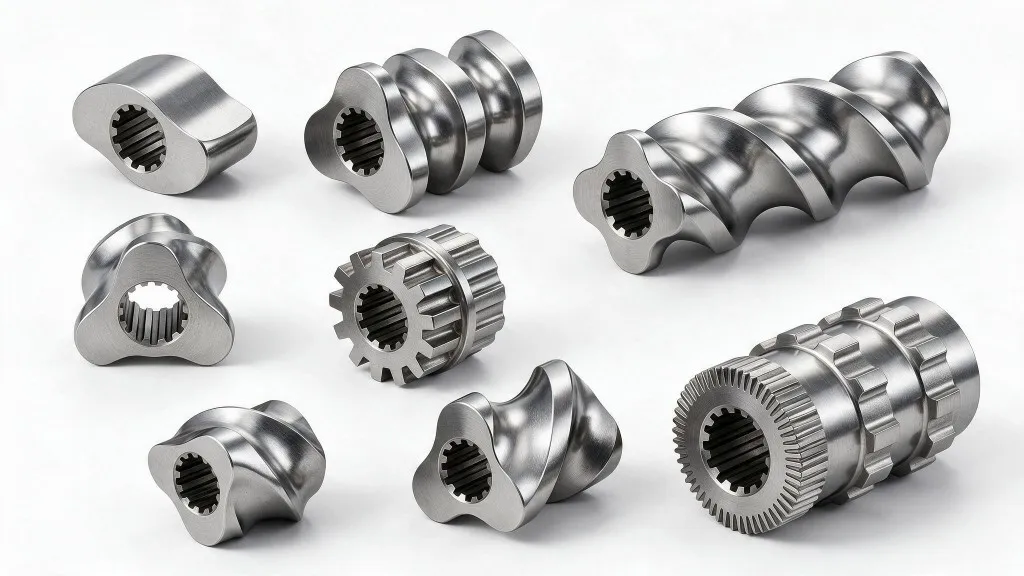

Mixing Elements
Homogeneous melt preparation
Mixing elements homogenize melt before downstream devolatilization, reaction, or pelletizing zones. 66° and 90° profiles support distributive mixing without excessive energy input.
- 66° and 90° mixing profiles for distributive blending
- Supports devolatilization and reactive extrusion zones
- Matched to polymer viscosity and filler percentage
- Modular placement along L/D 24–60 screw builds

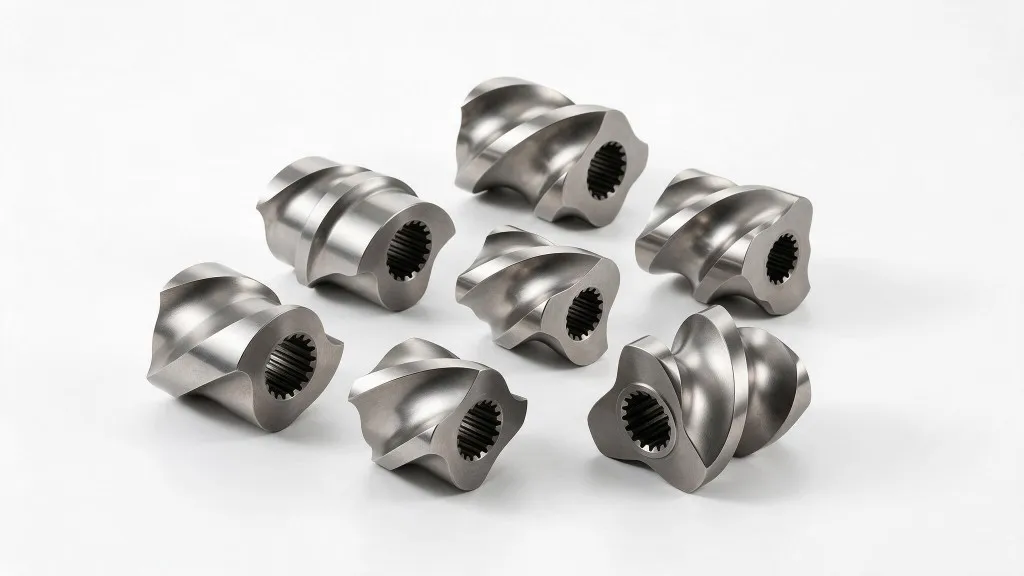

Reverse Elements
Fill control and back-mixing
Reverse conveying and reverse kneading elements create controlled back-pressure and fill-length management in critical screw zones. Used to balance melting, mixing intensity, and vent performance.
- Reverse conveying for fill-length and pressure control
- Reverse kneading for localized back-mixing zones
- Supports devolatilization and vent-section stability
- Configured as part of full screw profile review

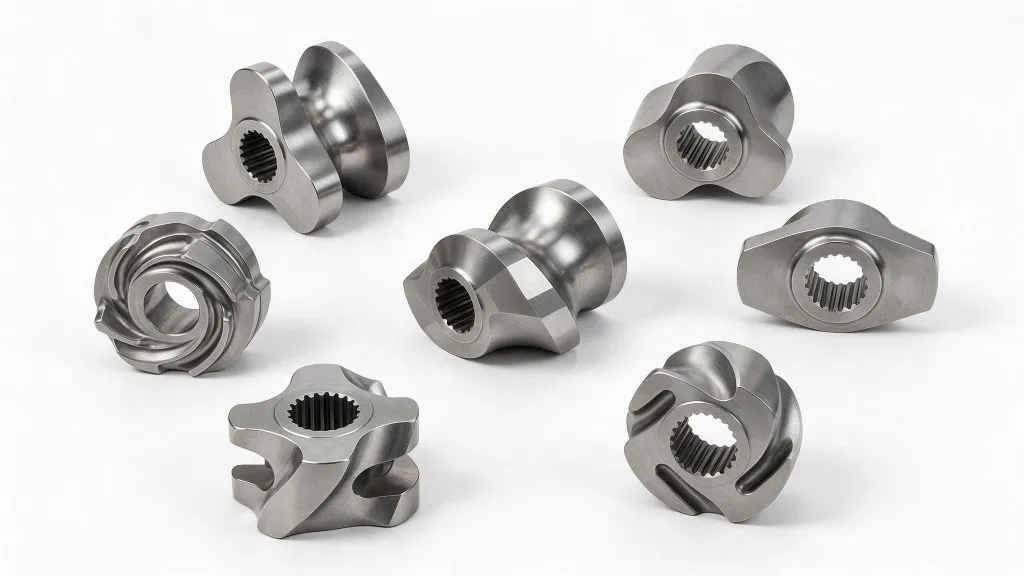

Special Elements
Purpose-built process zones
Gear/toothed mixing, barrier, and combination elements address demanding dispersion, melting, and multi-stage process requirements. Engineered for abrasive fillers, high mineral load, and specialty compound profiles.
- Gear / toothed mixing for intensive dispersive action
- Barrier elements for melting and mixing separation
- Combination elements for multi-function screw zones
- Metallurgy selected for abrasive and corrosive compounds
Application Areas
Industries & Compounds We Serve
Unified Technical Specifications
14 mm – 97 mm Series
| Parameter | Specification Range |
|---|---|
| Screw Diameter | 14 mm – 97 mm |
| Screw Type | Co-rotating, modular segmented design |
| L/D Ratio | 24:1 – 60:1 (customisable) |
| Throughput | 0.5 kg/hr (30 ml) – 1200+ kg/hr @ density 1 |
| Screw Speed | 50 – 1200 rpm (VFD-controlled) |
| Main Motor Power | 1 HP – 500+ HP (application dependent) |
*Throughput depends on polymer type, filler percentage, screw configuration, and L/D ratio.
How We Work With You
From Requirements to Long-Term Support
Process requirements
We specify the line around polymer and additive mix, required kg/hr, dispersion quality, screw configuration, and downstream melt-pump or filtration needs.
Engineering & manufacture
Built at our manufacturing facility in Bangalore, India, each machine is engineered with precision screw profiles, heavy-duty gearboxes, and modular barrel systems — ensuring superior mixing, high torque stability, and long service life.
On-site commissioning
On-site commissioning
Operator & maintenance training
Operator & maintenance training
Production support
Spare screw, shaft and barrel supply; Annual Maintenance Contracts (AMC); Process optimization consultation.
Lifecycle services
We take ownership of outcomes — from design through installation, spares, and long-term support.

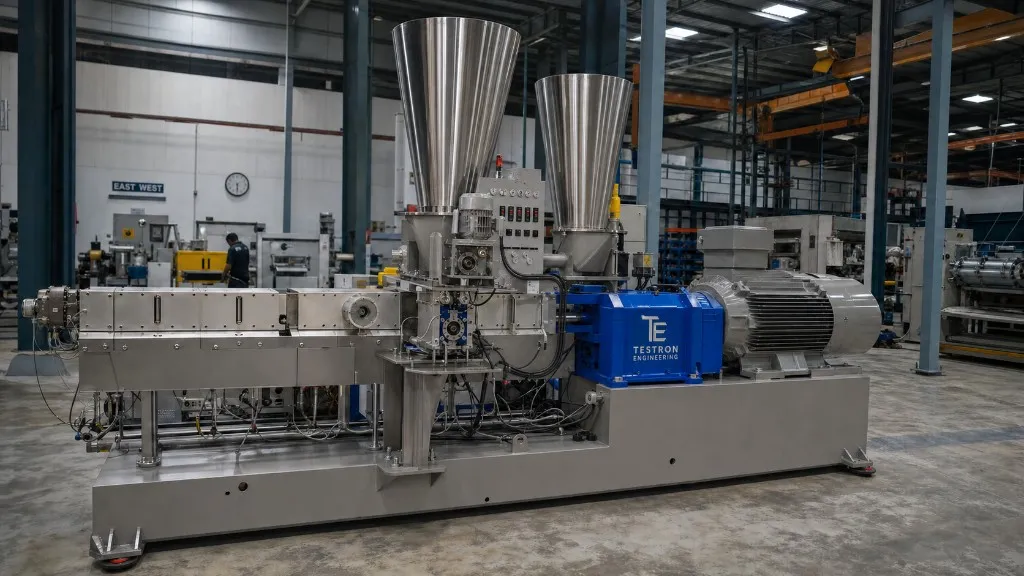

Product proof
In-House Machines, Elements, Barrels, and Gearboxes
Manufactured in Bangalore. Regional support from Ajman. From lab-scale R&D to industrial throughput, Testron extruders are configured for your material, output, and production environment.
UAE Support
Regional Support from Ajman
Manufacturing strength in India with expanding support across the UAE, GCC, and international markets.
Regional support and customer engagement from Ajman. Reach our team directly for engineering consultations, commissioning, and lifecycle support across the UAE and GCC.
- AddressAmber Gem Tower One, CWS-2V-228017, 26th floor, Sheikh Khalifa Street, Rashideya 3, Ajman, United Arab Emirates.
- Phone+971-52 148 6040
- Emailenquiry@testronengineering.com
FAQ
Common Questions from UAE Buyers
What screw diameter range do you offer?
Our co-rotating twin-screw extruders range from 14 mm to 97 mm screw diameter (capable up to Ø150 mm, L/D 60), with modular segmented screw design.
What throughput can your extruders achieve?
Throughput ranges from 0.5 kg/hr (30 ml) to 1200+ kg/hr at density 1, depending on polymer type, filler percentage, screw configuration, and L/D ratio.
What electrical supply do your machines support?
380–440V, 3-Phase, 50/60Hz and 110V configurations are available.
Do you provide commissioning and training?
Yes. We provide on-site commissioning, operator and maintenance training, spare supply, AMC, and process optimization consultation.
What warranty do you offer?
24 months standard warranty (physical damage; electrical damage excluded).
How do you support customers in the UAE?
We provide regional support and customer engagement from Ajman. Contact us at +971-52 148 6040 or enquiry@testronengineering.com.
What materials and surface treatments do you offer for screw elements?
Screw elements are available in wear-resistant tool steels with gas nitriding (EN41B) and hard-facing options. Material selection depends on filler load, corrosion exposure, and compound abrasiveness — configured for masterbatch, compounding, recycling, and engineering plastics.
Can you supply individual screw elements to match my existing configuration?
Yes. We manufacture modular screw elements from Ø14–97 mm — conveying, kneading, mixing, reverse, and specialty types — configured to your screw profile, metallurgy requirements, and compound. Share your screw Ø, L/D, and current element layout for an engineering review.
What barrel liner options are available?
We supply replaceable barrel liners with nitrided and bimetallic inner surfaces, precision-bored for screw-barrel clearance. Options are selected for abrasive fillers, corrosive additives, and operating temperatures up to 400°C.
Can you integrate melt pumps and filtration into the line?
Yes. We engineer melt pump and auto-filtration systems for stable melt pressure, reduced pulsation, and replaceable screen packs — integrated with your die, pelletizing, or profile downstream setup.
Request an Engineering Review of Your Process
Share screw Ø, throughput, or material. An applications engineer replies — WhatsApp or enquiry. No catalog spam.
Request Engineering Review
Applications engineer replies. No catalog spam.
